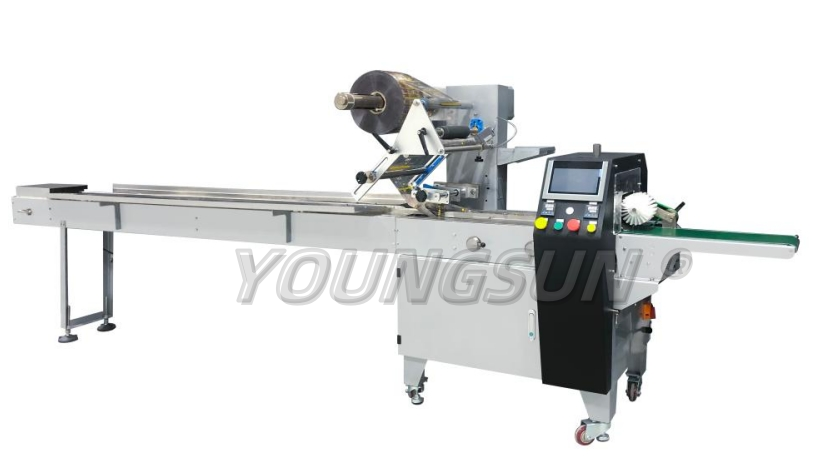

YC420 Upper Film Pillow Packaging Machine
Description
The YC420 Upper Film Pillow Packaging Machine is a high-speed, high-precision servo-driven packaging solution designed for a wide range of irregular, sticky, and soft products. Featuring servo motors for feeding, film feeding, and cutting, this machine offers a simplified mechanical structure with stable operation. The touch screen control system provides an intuitive and user-friendly interface for easy operation.
Applications
Suitable for packaging various irregular items, sticky items, and soft items, including:
- Food: Steamed cakes, preserved fruits, bread, mooncakes, soft candy, pastries, sausages, noodles, dough sheets, vermicelli, etc.
- Daily Chemicals: Soap, tape, hotel disposable supplies, towels, etc.
- Hardware: Door and window accessories, furniture accessories, air conditioning parts, instruction manuals, etc.
Features
- Feeding, film feeding, and cutting all adopt servo motors, with simplified mechanical structure and stable operation.
- High speed and high precision.
- The control system uses touch screen display, providing a user-friendly interface for easy, intuitive, and convenient control.
Detail Images
Stainless steel feeding tail stock, durable and long-lasting. Width adjustable for different products. Dual-frame support for enhanced stability.
Stainless steel gantry frame for secure fixation. High-precision electric eye for automatic product sensing. Adjustable bag former for versatile product sizes.
Film feeding bracket with simplified design for easy operation. Equipped with film threading diagram for quick roll film replacement. Rational threading bracket design for tighter film pulling and more stable feeding.
Control system with touch screen display. More convenient and intuitive operation.
Self-developed controller, perfectly matched to the equipment. Three-servo control with high precision and speed. Neat electrical box wiring for easy maintenance.
Technical Parameters
| Bag Size (L) | 60-500mm |
| Bag Size (W) | 35-160mm |
| Bag Size (H) | 5-50mm |
| Packaging Speed | 30-120 packs/min (varies by product size and film material) |
| Roll Film Size | 80-400mm |
| Compatible Film Materials | OPP, PVC, OPP/CPP, KOP/CPP, Aluminum-coated film |
| Power Supply | 220V 50Hz |
| Power | 5.40KW |
| Machine Weight | 300kg |
| Machine Dimensions | L4365 x W915 x H1100mm (including tail stock) |
Configuration List
| No. | Component | Brand | Country |
|---|---|---|---|
| 1 | Servo Motor | YOUNGSUN | China |
| 2 | Servo Drive | YOUNGSUN | China |
| 3 | Controller | YOUNGSUN | China |
| 4 | Touch Screen | Xinje | China |
| 5 | Intermediate Relay | Omron | Japan |
| 6 | Breaker | CHNT | China |
| 7 | Switch Button | KND | China |
| 8 | Bearing | – | China |
| 9 | Frame | Carbon Steel | – |
Frequently Asked Questions
What types of products can the YC420 packaging machine handle?
The YC420 Upper Film Pillow Packaging Machine is designed for irregular items, sticky items, and soft items. It handles food products like steamed cakes, bread, mooncakes, and sausages; daily chemicals like soap and towels; and hardware items like door and window accessories.
What is the packaging speed of this machine?
The machine achieves 30-120 packs per minute, depending on product size and film material. The servo-driven system ensures consistent speed and precision across different product types.
What film materials are compatible with this machine?
The machine supports OPP, PVC, OPP/CPP, KOP/CPP, and aluminum-coated films. Roll film size ranges from 80mm to 400mm, providing flexibility for various packaging requirements.
What control system does the machine use?
The machine features a touch screen display control system with a user-friendly interface. It uses a self-developed controller with three-servo control for high precision and speed, and the electrical box wiring is neatly organized for easy maintenance.
What are the power requirements and machine dimensions?
The machine operates on 220V 50Hz power supply with 5.40KW power consumption. It measures 4365mm x 915mm x 1100mm (including tail stock) and weighs 300kg, making it suitable for most production facilities.
What is the bag size range of this machine?
The machine supports bag sizes from L 60-500mm, W 35-160mm, H 5-50mm, accommodating a wide variety of product dimensions for versatile packaging applications.
Is the machine easy to maintain?
Yes, the machine features a simplified mechanical structure with servo motors for feeding, film feeding, and cutting. The stainless steel construction ensures durability, and the neatly organized electrical box makes maintenance and inspection convenient.
