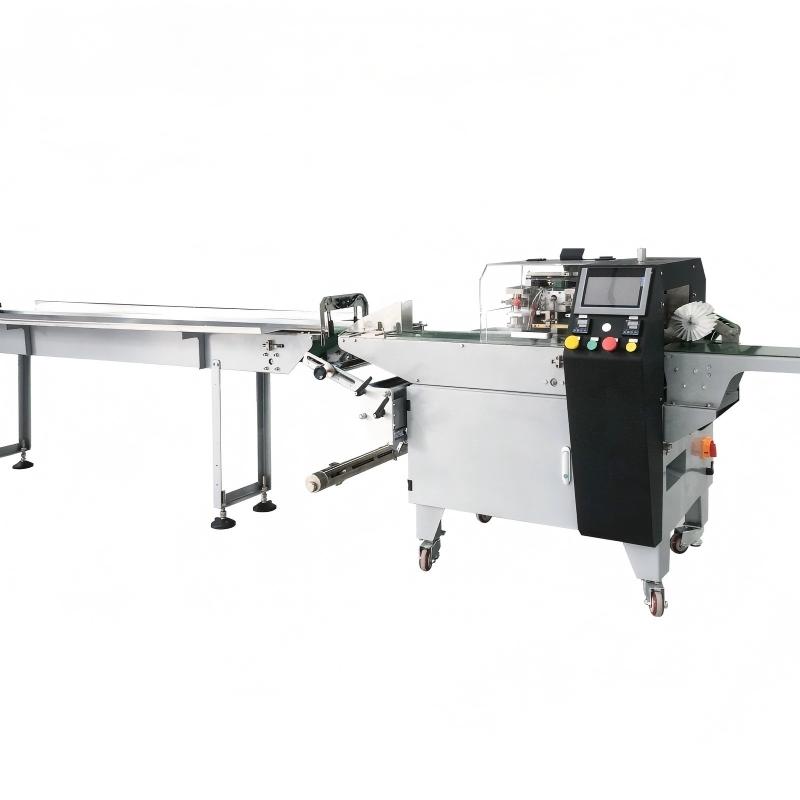

YC420X Pillow Packaging Machine
Description
The YC420X Pillow Packaging Machine is a versatile servo-driven packaging solution featuring an optional variable-length mode that automatically detects product length, enabling simultaneous packaging of products with different lengths. With independent servo motors for feeding, film feeding, and cutting, this machine delivers high-speed, high-precision performance with a simplified mechanical structure and stable operation.
Applications
Suitable for packaging various irregular items, sticky items, and soft items, including:
- Food: Steamed cakes, preserved fruits, bread, mooncakes, soft candy, pastries, sausages, noodles, dough sheets, vermicelli, etc.
- Daily Chemicals: Soap, tape, hotel disposable supplies, towels, etc.
- Hardware: Door and window accessories, furniture accessories, air conditioning parts, instruction manuals, etc.
- Medical Supplies: Flat face masks, KN95 masks, medical supplies, etc.
Features
- Feeding, film feeding, and cutting all adopt independent servo motor control, with simplified mechanical structure and stable operation.
- High speed and high precision.
- The control system uses touch screen display, providing a user-friendly interface for easy, intuitive, and convenient control.
- Optional variable-length mode automatically detects product length, enabling simultaneous packaging of products with different lengths.
Detail Images
Stainless steel feeding tail stock, durable and long-lasting. Width adjustable for different products. Dual-frame support for enhanced stability.

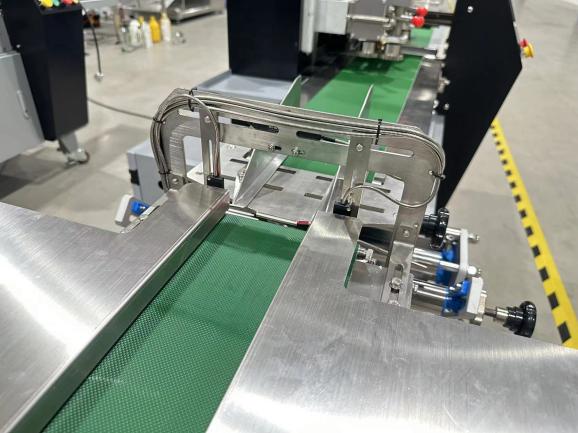

Stainless steel gantry frame for secure fixation. High-precision electric eye for automatic product sensing. Adjustable bag former for versatile product sizes.

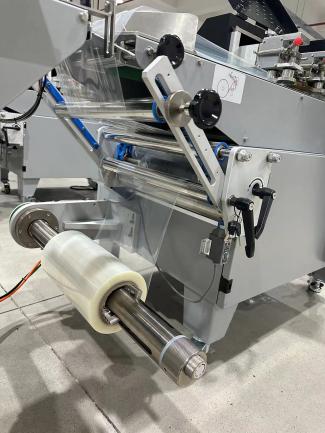

Film feeding bracket with simplified design for easy operation. Equipped with film threading diagram for quick roll film replacement. Rational threading bracket design for tighter film pulling and more stable feeding.

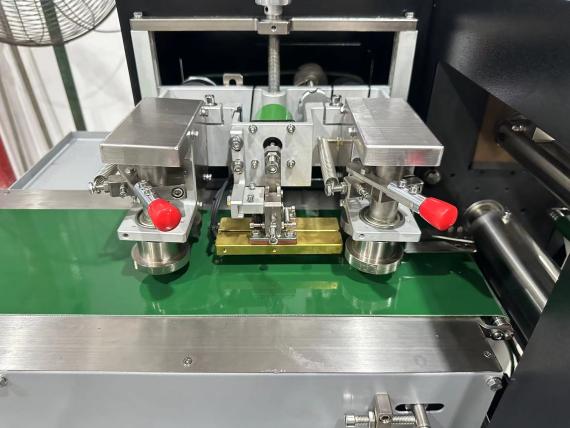

Mid-seal servo control for higher precision. Simplified design for easy adjustment. Open design with protective cover for enhanced safety.

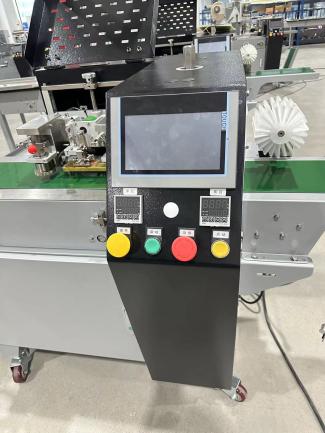

Control system with touch screen display. More convenient and intuitive operation.

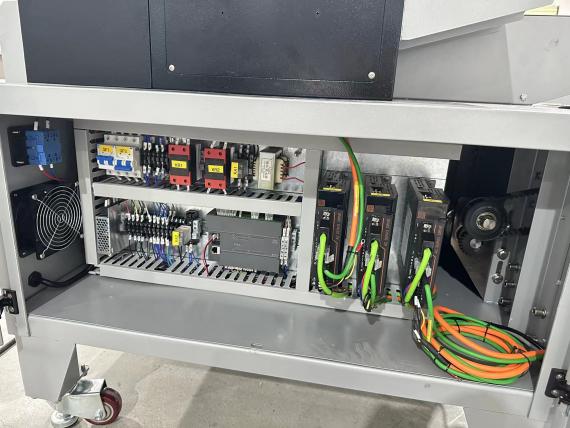

Self-developed controller, perfectly matched to the equipment. Three-servo control with high precision and speed. Neat electrical box wiring for easy maintenance.
Technical Parameters
| Bag Size (L) | 60-500mm (variable-length mode: bag length follows product) |
| Bag Size (W) | 35-160mm |
| Bag Size (H) | 5-50mm |
| Packaging Speed | 30-120 packs/min (varies by product size and film material) |
| Roll Film Size | 80-400mm |
| Compatible Film Materials | OPP, PVC, OPP/CPP, KOP/CPP, Aluminum-coated film |
| Power Supply | 220V 50Hz |
| Power | 5.40KW |
| Machine Weight | 300kg |
| Machine Dimensions | L4365 x W915 x H1100mm (including tail stock) |
Frequently Asked Questions
What is the variable-length mode on the YC420X?
The variable-length mode is an optional feature that automatically detects product length, enabling simultaneous packaging of products with different lengths. This eliminates the need for manual adjustments when switching between products of varying sizes, significantly improving production efficiency.
What types of products can the YC420X handle?
The YC420X is suitable for irregular items, sticky items, and soft items across food (steamed cakes, bread, mooncakes, sausages), daily chemicals (soap, towels), hardware (door and window accessories), and medical supplies (flat face masks, KN95 masks).
What is the packaging speed of this machine?
The machine achieves 30-120 packs per minute, depending on product size and film material. The independent servo motor control system ensures consistent speed and precision.
What is the mid-seal servo control feature?
The mid-seal servo control provides higher precision sealing with a simplified design for easy adjustment. The open design offers intuitive operation while the protective cover ensures operator safety.
What are the power requirements and dimensions?
The machine operates on 220V 50Hz with 5.40KW power consumption. It measures 4365mm x 915mm x 1100mm (including tail stock) and weighs 300kg.
What film materials are compatible?
The machine supports OPP, PVC, OPP/CPP, KOP/CPP, and aluminum-coated films with roll film sizes from 80mm to 400mm.

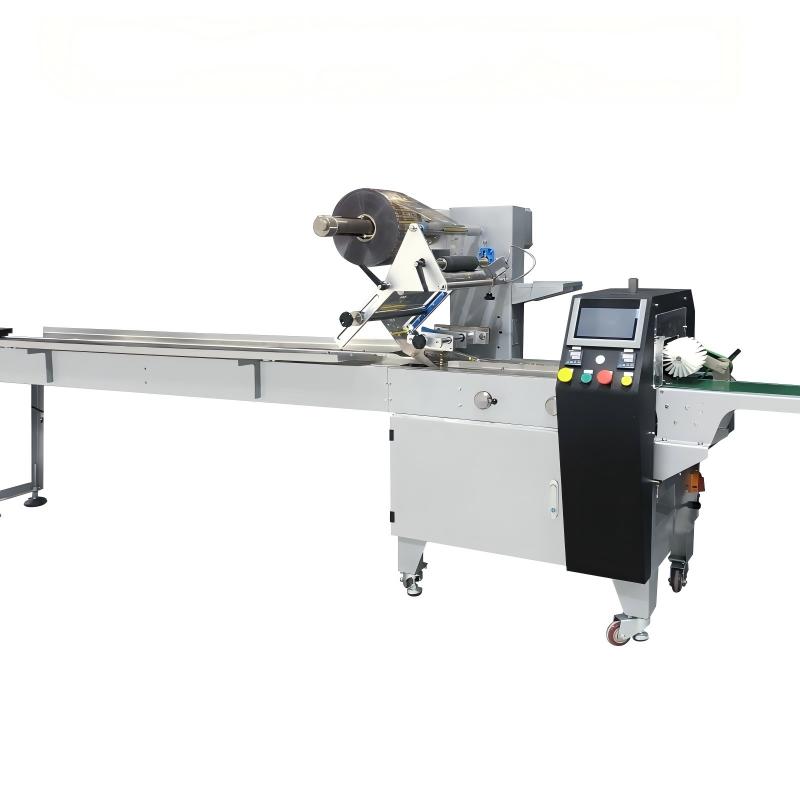

How does the YC420X differ from the YC420?
The YC420X adds a variable-length mode for automatic product length detection and includes mid-seal servo control for higher precision. It also supports medical supply packaging including face masks and KN95 masks.
