Walk onto any mid-sized packaging plant and you’ll see the same pattern: workers standing at separate stations, folding boxes by hand, taping them shut, and stacking pallets one layer at a time. Shift ends, someone tallies output on a clipboard, and nobody knows why the line hit 400 cartons Tuesday but only 280 Thursday. That’s the problem an automated packaging line exists to solve — not just replacing labor, but tying every machine, conveyor, and operator action into one synchronized system where bottlenecks show up on an HMI before they cause downtime.
Whether you’re a small factory owner thinking about your first turnkey packaging system or a production director upgrading an existing line, this guide covers what equipment you need, how to match speeds, how long integration takes, and when the numbers justify the investment.
What a Fully Integrated Packaging Line Actually Looks Like
Most people picture a packaging line as a conveyor belt with some boxes on it. In practice, a fully integrated end-of-line packaging system is a sequence of machines connected by controlled conveyance, all governed by a single PLC. The typical flow runs like this:

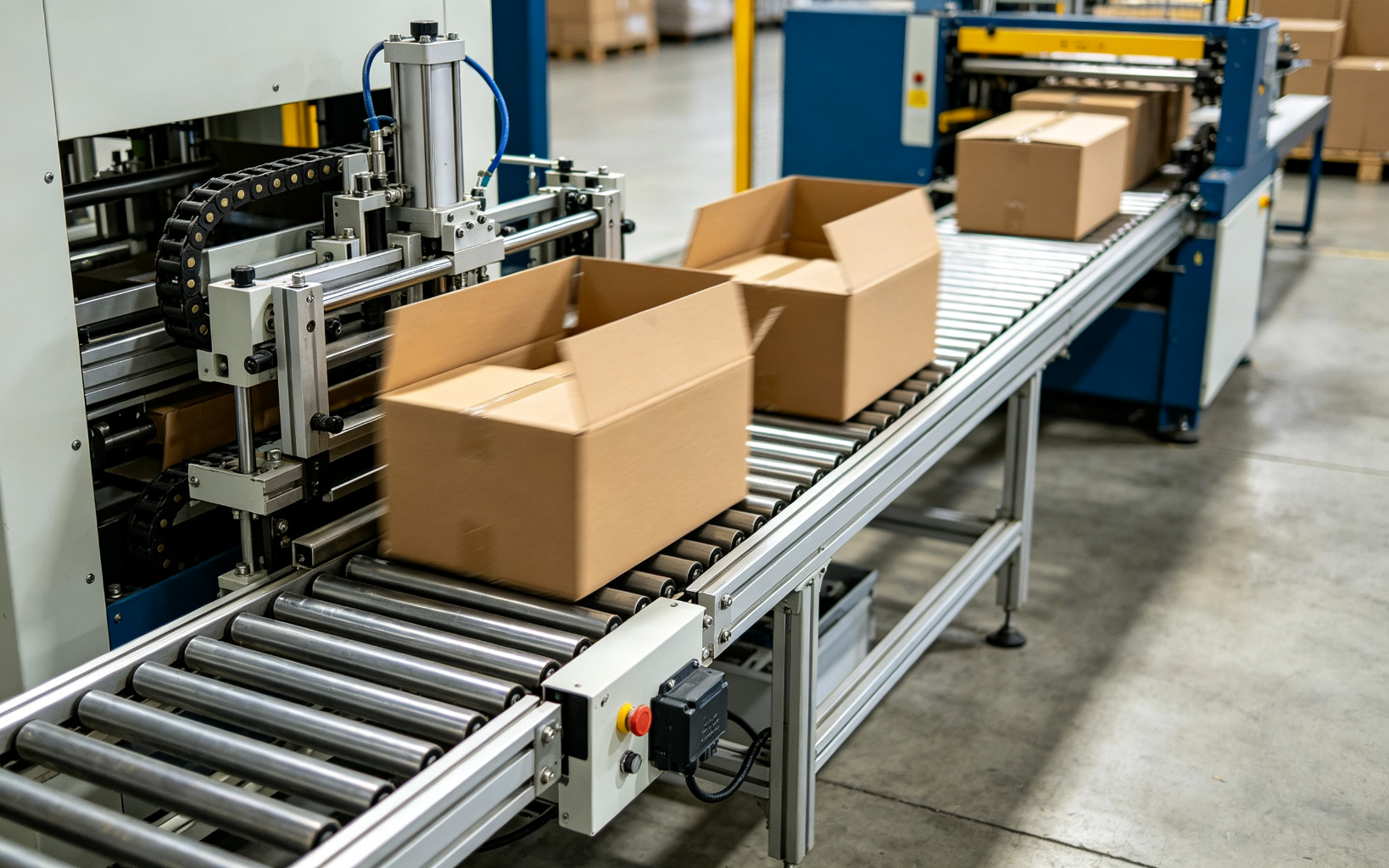

A case erector forms blanks, tapes the bottom, and feeds open cartons onto a powered roller conveyor. Operators or a robotic pick-and-place load product in. A top/bottom case sealer folds the flaps and applies tape or hot-melt adhesive. A strapping machine may apply PET or PP bands for load stability. A robotic palletizer stacks cases onto pallets in a programmed pattern.
Between each machine sits a section of conveyor — often with accumulation capability — that absorbs speed mismatches so one machine’s micro-stoppage doesn’t ripple down the entire line. This is what people in the industry call conveyor accumulation, and it’s the single most under-designed element in most small factory automation packaging line projects.
The tricky part is that each piece of equipment has a different rated speed. A case erector might be rated at 15 cartons per minute, a top/bottom sealer at 25, and a robotic palletizer at 10 cycles per minute (where one cycle can handle multiple cases depending on the gripper). Designing the accumulation zones between them is where the real engineering happens.
Line Balancing: Matching Speeds Across Case Erector, Sealer, and Palletizer
Here’s what we see on the factory floor: customers buy the fastest machine they can afford, string conveyors between them, and wonder why the line still doesn’t hit rated output. The answer is line balancing — sizing each stage’s speed and buffer capacity so the slowest machine dictates actual throughput, and the machines around it never starve or back up.
The math here is straightforward. If your bottleneck machine (say, the palletizer) handles 12 cases per minute, and your case erector runs at 20, you need accumulation capacity between them to hold the surge. A typical rule of thumb: size the conveyor accumulation zone to hold 1.5–2 minutes of production at the bottleneck rate. For a 12 cpm line, that’s 18–24 cases worth of conveyor length — roughly 4–6 meters depending on carton footprint.
| Equipment Stage | Typical Speed (cartons/min) | Accumulation Buffer Needed | MTBF (typical, hours) |
|---|---|---|---|
| Case Erector | 12–20 | 30–60 sec upstream buffer | 800–1,200 |
| Top/Bottom Case Sealer | 20–40 | 20–40 sec between sealer & strapper | 1,500–2,500 |
| Strapping Machine | 15–30 | Not usually buffered (inline) | 600–1,000 |
| Robotic Palletizer | 8–15 (multi-case gripper) | 1–2 min accumulation upstream | 3,000–5,000 |

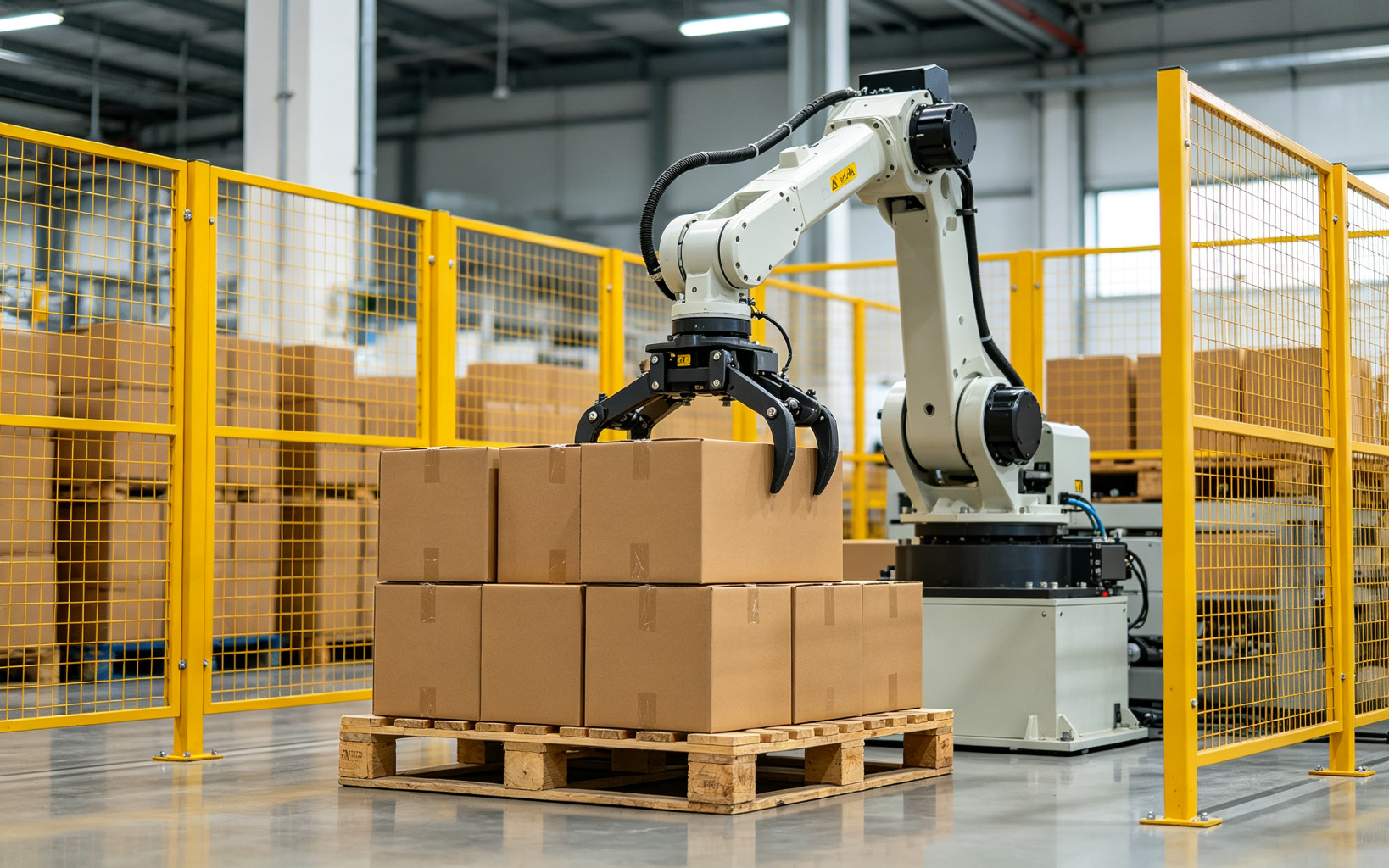

Most engineers miss this: the case erector and sealer can run faster, but the palletizer sets the ceiling. If your robotic palletizer is rated at 10 cycles/min with a 4-case gripper, that’s 40 cpm theoretical. In practice, account for 60–70% OEE — so real output is 24–28 cpm. Design the rest of the line to match that, not the nameplate speed.
For flexible packaging line design where multiple carton sizes run through the same equipment, changeover time becomes a critical metric. A well-designed case erector with tool-less changeover should switch between carton sizes in under 10 minutes. If yours takes 45 minutes, you’re losing 15–20% of production time on a line that runs four SKUs a day.
The Integration Process: From Layout Drawing to First Run
When a customer asks how to integrate case erector with palletizer, they’re usually picturing buying four machines and bolting them together. In reality, packaging line integration is a structured project with distinct phases.
Phase 1: Requirements Definition
You start with the product dimensions, target output rate, carton sizes, and daily volume. If you’re running 5,000 cartons across an 8-hour shift, that’s roughly 10 cpm — not demanding. If you need 30 cpm, the equipment selection and conveyor design change significantly. Floor plan, ceiling height, and forklift traffic paths all feed into the layout.
Phase 2: Layout and Simulation
The supplier produces a 2D or 3D layout showing machine footprints, conveyor runs, operator access points, and safety guarding distances. At this stage, we at SunAura use discrete-event simulation software to test line behavior — what happens when the case erector jams for 90 seconds? Does the accumulation zone hold, or does the upstream line stop? This is also where you confirm whether you need turn radiuses, inclines, or cross-transfer conveyors to route around existing equipment.
A typical end-of-line for 30 cartons/min needs roughly 12–15 meters of linear floor space, plus pallet discharge area. If your factory only has 8 meters of aisle, you’re either going to need a U-shaped layout or a more compact robotic cell.
Phase 3: Control Integration and Safety
The PLC logic has to coordinate start/stop sequences, accumulate-and-merge logic, and interlocks between machines. Safety guarding must meet ISO 13849 performance Level d for Category 3 circuits — light curtains, safety interlocks on gate doors, and emergency stop circuits that are independent of the standard control network. This isn’t optional; auditors and insurance inspectors will flag a line that doesn’t meet it.
Phase 4: FAT and SAT
FAT happens at the supplier’s plant — you run sample cartons at rated speed, verify changeover times, and check alarms. SAT happens after installation at your facility, where floor unevenness, power fluctuations, and ambient temperature reveal issues the FAT didn’t.
A food factory in Shandong was running three separate manual packing stations before integrating a single line. The original layout had 9 operators per shift. After integration with a case erector, automatic sealer, and robotic palletizer, they cut to 3 — one monitoring the line, one feeding raw material, one handling pallet dispatch. OEE went from an estimated 55% to 78% within three months. Above 85% OEE is world-class, but that requires a mature maintenance program, not just good hardware.
Calculating ROI: When Automation Pays for Itself
Where people go wrong with packaging line ROI calculation is that they only count the machine purchase price. A realistic model includes equipment cost, installation, conveyor integration, electrical work, operator training, and first-year maintenance.
Here’s a realistic example for a mid-sized line:
| Cost / Saving Component | Estimated Value (USD) | Notes |
|---|---|---|
| Case erector + sealer + strapper | $28,000 – $45,000 | Mid-range equipment |
| Robotic palletizer (6-axis, 20 kg payload) | $35,000 – $55,000 | Includes custom gripper |
| Conveyors + integration + controls | $18,000 – $30,000 | Depends on layout complexity |
| Installation, FAT/SAT, training | $8,000 – $15,000 | Travel + commissioning |
| Total Project Investment | $89,000 – $145,000 | |
| Labor saved (6 operators × $35K/year) | $210,000/year gross | After integration, 2–3 operators remain |
| Net annual savings (after maintenance) | ~$150,000 – $170,000 | |
| Payback Period | ~8–11 months |
These numbers are industry-typical ranges. Actual ROI depends heavily on local labor rates, shift structure, and carton volume. For a small factory automation packaging line running two shifts, the math usually closes in 12–18 months. Single-shift operations need higher volume to justify the investment.

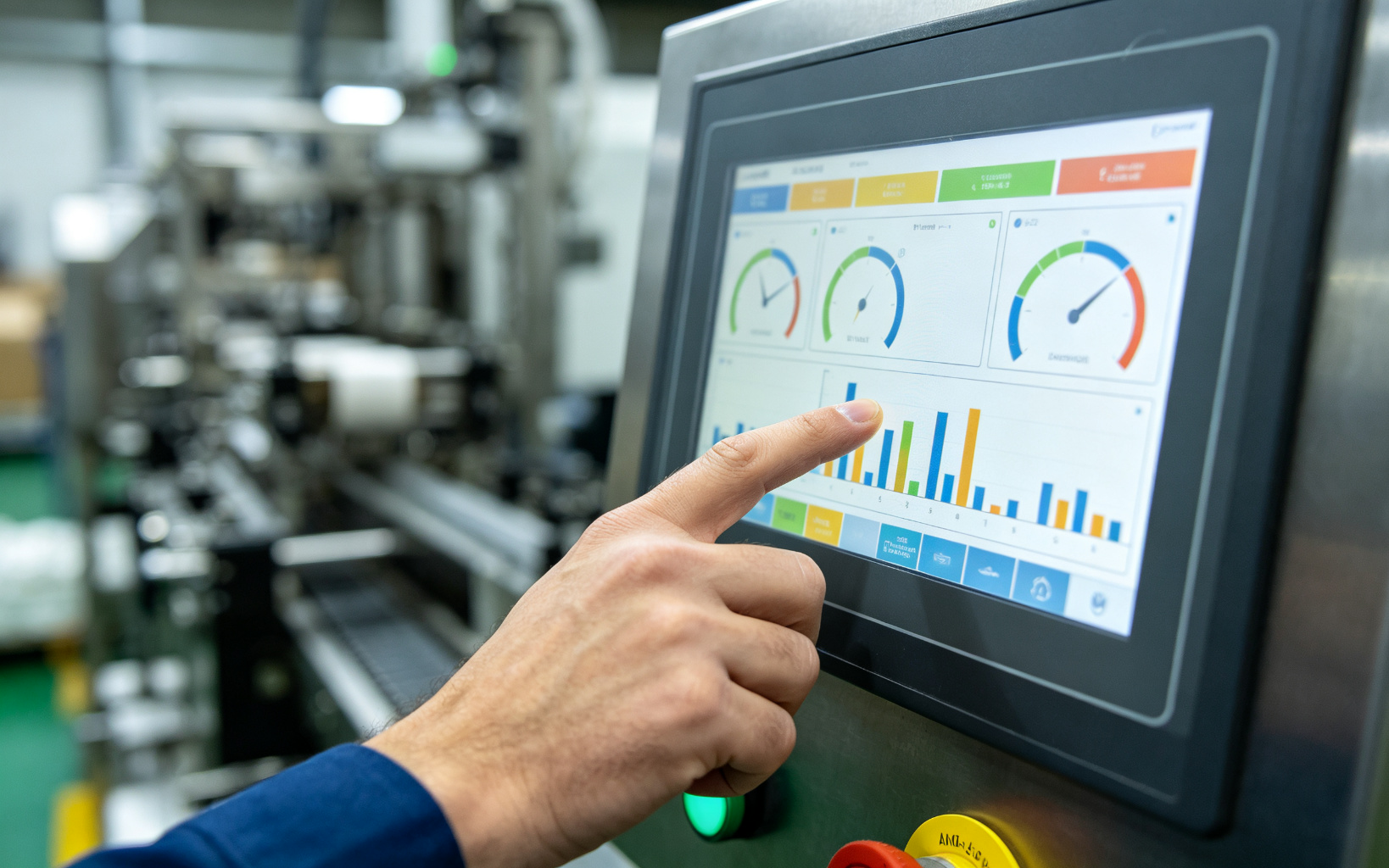

Beyond labor, you get indirect savings: reduced carton damage from inconsistent hand-taping, better pallet stack stability, and performance data. Companies that skip the OEE data layer usually regret it within a year — you can’t improve what you don’t measure.
Common Integration Pitfalls and How to Avoid Them
After seeing dozens of lines go from drawing board to production, a few mistakes recur.
Undersized accumulation conveyors. This is number one. Customers try to save $3,000 on conveyor length and end up with a line that starves the palletizer every time the case erector jams. Add the buffer; it costs less than one shift of lost production.
Ignoring changeover frequency. If you run 12 SKUs and your line takes 30 minutes to change over, you need quick-change tooling. Design for your actual mix, not your idealized volume plan.
Underestimating safety guarding costs. Fencing, light curtains, and safety relays add 10–15% to project budget. If your supplier’s quote doesn’t include them, the bill arrives during installation.
No spare parts strategy. Wear parts — tape heads, vacuum cups on the case erector, gripper fingers — will fail. Keep critical spares on site. MTBF on these items is 6–12 months under continuous use.
Skipping operator training. We’ve seen fully automated lines sit idle for two weeks because no one knew how to recover a jam. Budget for hands-on training during SAT, and insist on a printed quick-reference guide.
Organizations like PMMI and MHI publish guidance on packaging line best practices and safety standards. Rockwell Automation also publishes white papers on control architecture worth reviewing before you finalize your spec.
If you’re evaluating a custom packaging line manufacturer, ask to see reference installations in your industry. A supplier that shows you a running nearby factory saves months of discovery.
Frequently Asked Questions
How long does a typical packaging line integration project take?
From signed PO to first production run, plan 12–20 weeks. FAT takes 2–4 weeks at the factory, shipping and installation 2–3 weeks, and SAT/commissioning another 2–4 weeks. Custom layouts or special tooling can extend this.
What’s the floor space requirement for a basic end-of-line packaging system?
A straight-line for 20–30 cpm needs about 10–14 meters of length, plus 3–4 meters for pallet discharge and operator access. U-shaped layouts can fit into 8 meters but limit future expansion.
Can I integrate new equipment with my existing line?
Yes, but it requires careful control integration. Your existing PLC may need an expansion module or separate line controller. A retrofit typically costs 15–25% less than a greenfield install — but only if your existing machines are in good mechanical condition.
What OEE should I expect from a new automated packaging line?
Realistic targets are 70–80% OEE in the first six months, climbing to 80–85% after operators are fully trained and maintenance procedures are established. Above 85% is world-class and typically requires a TPM (Total Productive Maintenance) program in place.
How much does an end-of-line packaging system cost?
A basic entry-level line (case erector + sealer + manual palletizing) starts around $40,000–$60,000. A mid-range turnkey system with robotic palletizer, strapping, and full accumulation conveyance typically runs $90,000–$150,000. High-speed lines for 40+ cpm go from $200,000 upward. Request a SunAura packaging line quote with your specific specs for an accurate estimate.
If you’re planning a new line or upgrading an existing one, send us your product dimensions, target output, and floor plan. SunAura Machinery’s engineering team in Qingdao — a 48,000 m² facility with CE, ISO 9001, and SGS certification — will come back with a layout proposal, equipment list, and timeline. We’ve delivered packaging line solutions across food, pharmaceutical, and consumer goods factories. Whether you need case erector machines, strapping machines, palletizer solutions, or integrated conveyor systems, the same engineering discipline applies. Reach out at [email protected] and we’ll turn it into a layout within three working days.
