Pallet Wrapping Machines & Stretch Wrapping Systems
From semi-automatic entry-level turntable wrappers to fully automatic gantry and rotary arm systems — SunAura manufactures a complete range of pallet wrapping machines for every volume, load type, and automation level. Factory direct pricing, CE certified, 48-hour run tested.
SunAura Pallet Wrapping Machines Range
13 specialized models covering turntable, rotary arm, gantry, horizontal, radial drum, and ring coil wrapping technologies.

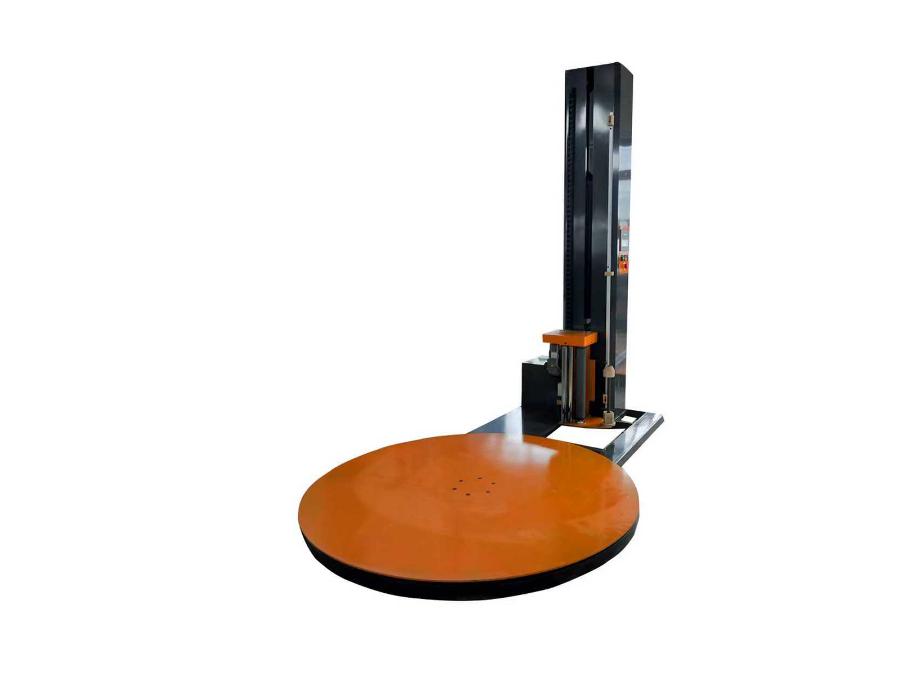

PW-T1650Semi-Automatic Turntable Pallet Wrapper
Entry-level semi-automatic turntable wrapper with pre-stretch film carriage. Ideal for 20-50 pallets/day.
View Details →

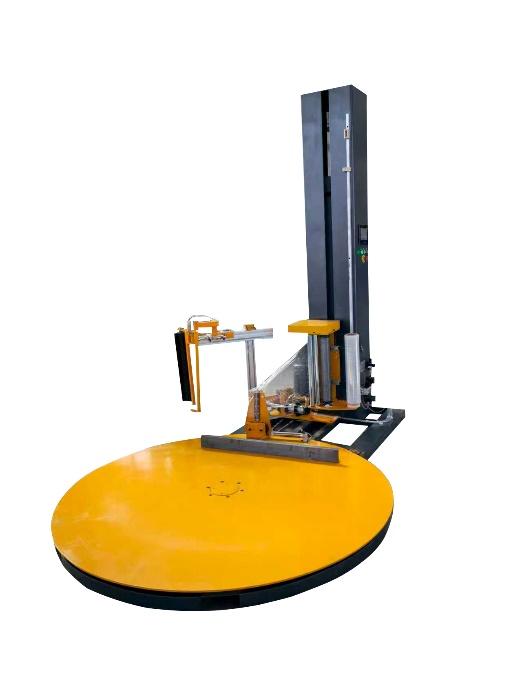

PW-OL2000Online Pallet Wrapper with Conveyor
Fully automatic inline wrapper with conveyor integration. Perfect for high-volume production lines.
View Details →

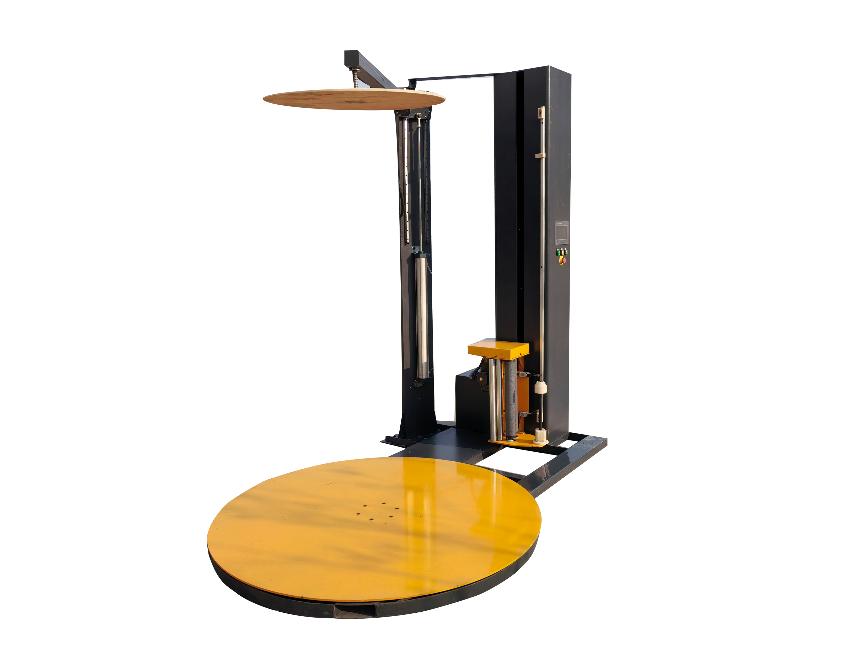

PW-TP1650Top Press Pallet Wrapper
Pneumatic/electric top press stabilizes unstable or lightweight loads during wrapping.
View Details →

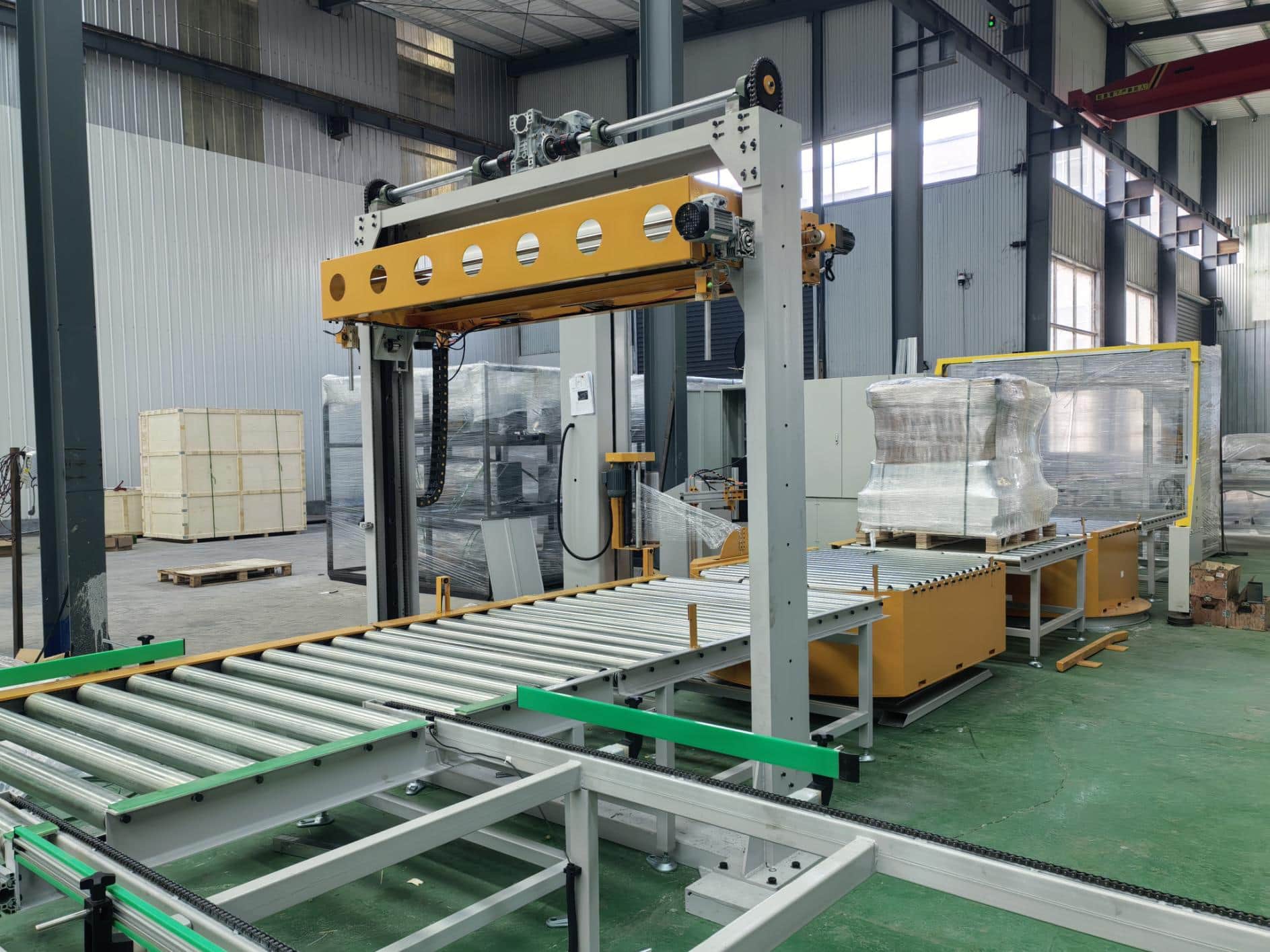

PW-GO1200Gantry Online Pallet Wrapper
High-speed gantry-style wrapper with stationary pallet. Ideal for very heavy or unstable loads.
View Details →

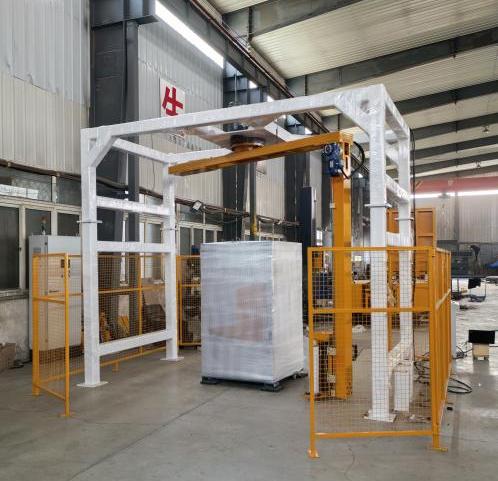

PW-RA1500Rotary Arm Pallet Wrapper
Rotary arm design wraps stationary pallets. Perfect for high-volume distribution centers.
View Details →

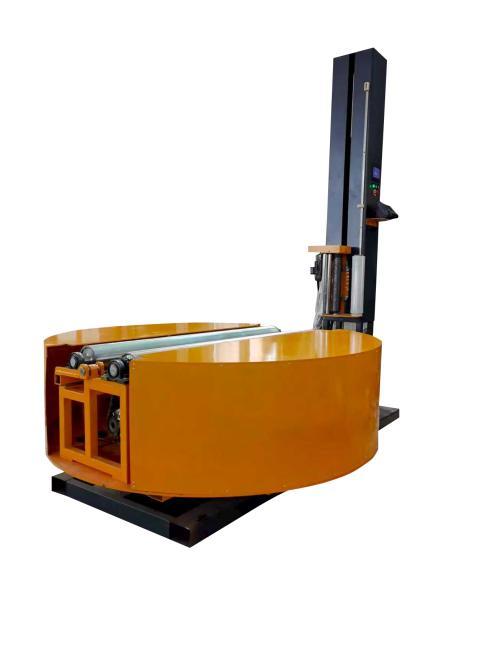

PW-RD2000Radial Drum Wrapping Machine
Specialized radial wrapping for drums, barrels, and cylindrical containers.
View Details →

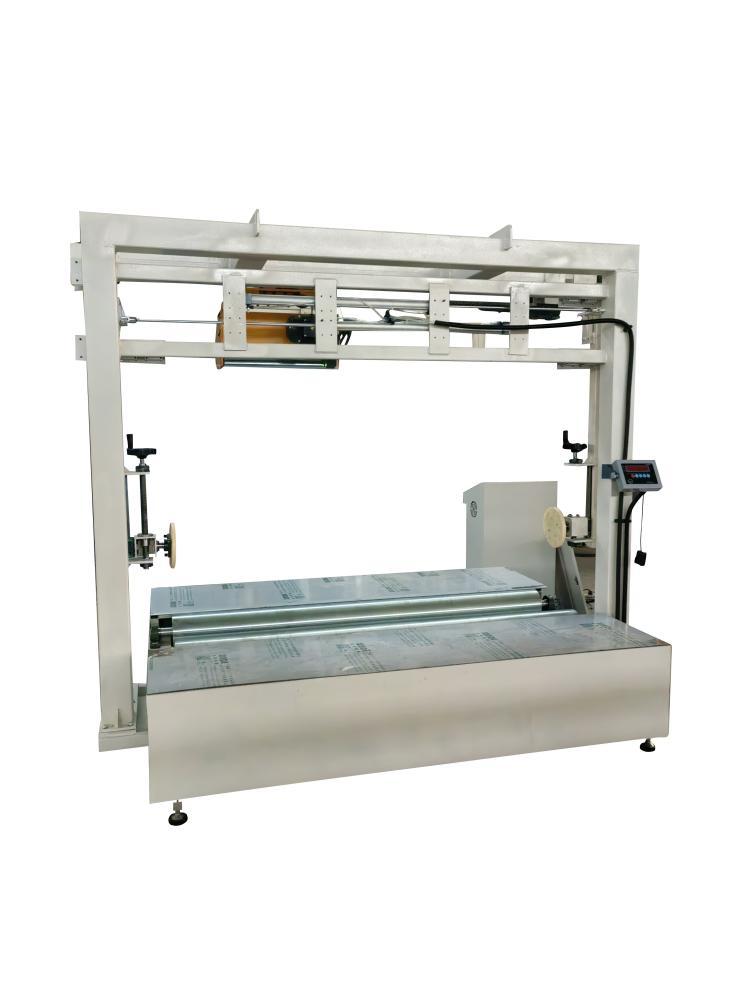

PW-GF1800Gantry Frame Wrapping Machine
Large gantry frame wrapper for oversized, heavy, or irregular loads.
View Details →

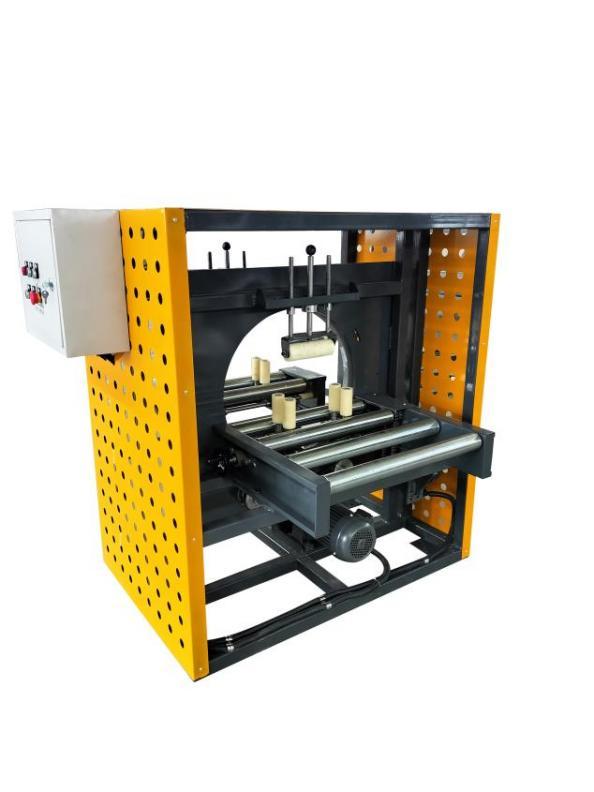

PW-HS1500Horizontal Wrapping Machine Small
Horizontal spiral wrapper for long products: timber, steel bars, pipes up to 1500mm diameter.
View Details →

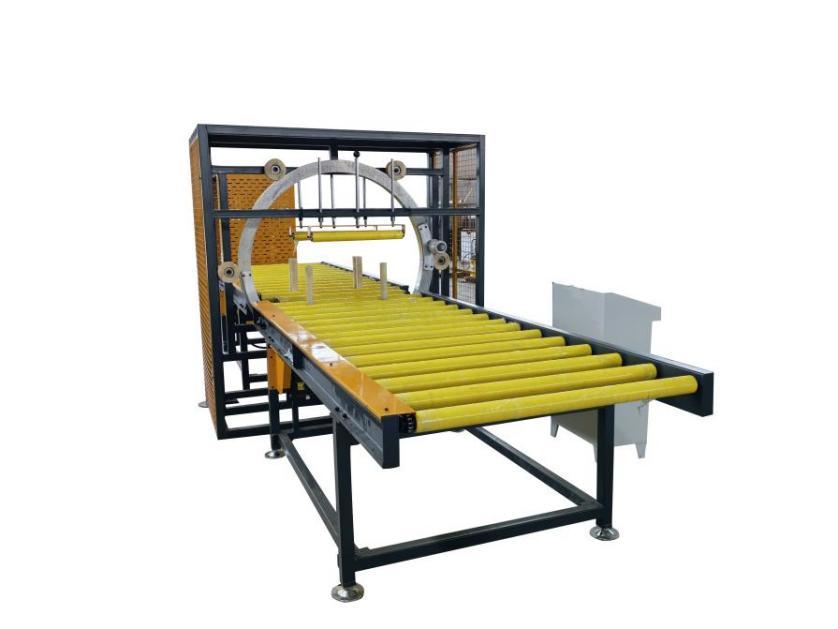

PW-HL6000Horizontal Wrapping Machine Large
Heavy-duty horizontal wrapper for large, long products up to 6000mm diameter and 12000mm length.
View Details →

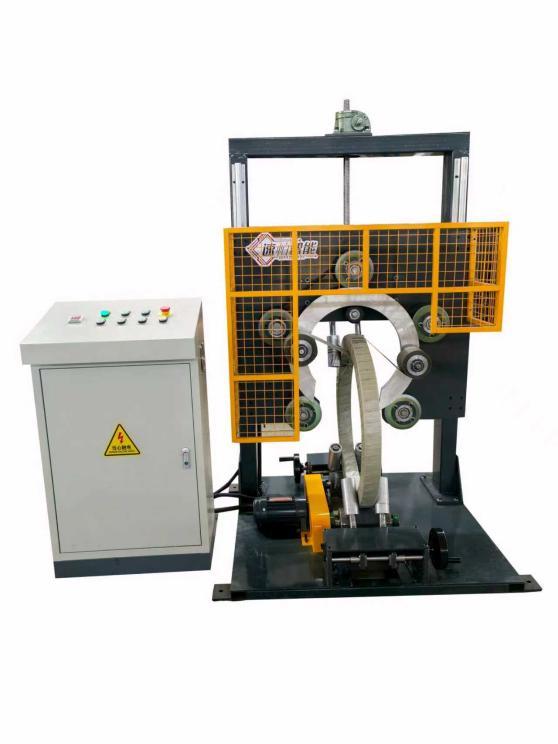

PW-RV800Ring Coil Wrapper Vertical Small
Vertical ring wrapper for small coils: cable drums, wire coils, yarn cones up to 800mm.
View Details →

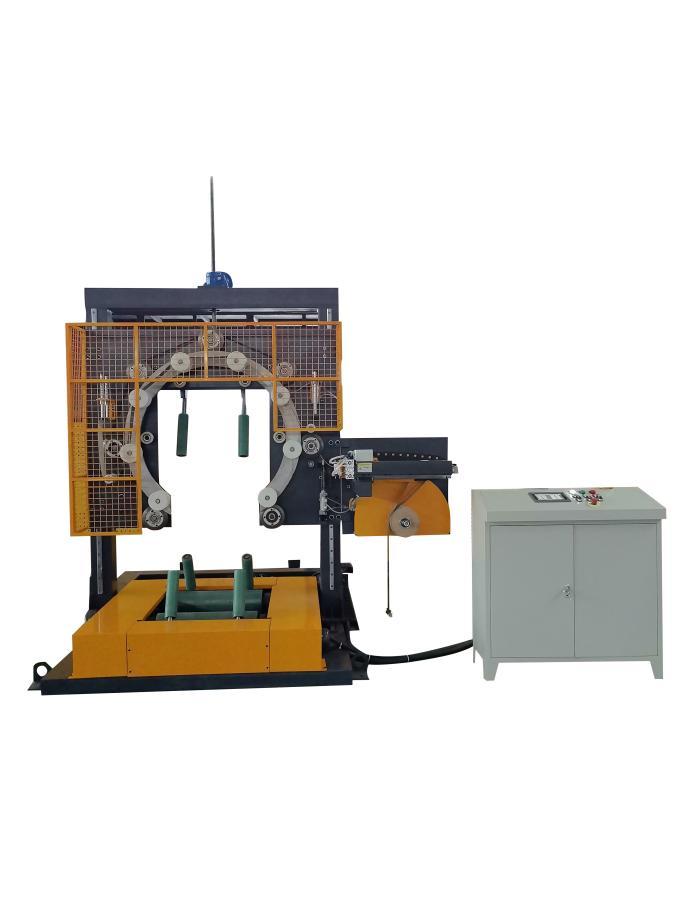

PW-RV1500Ring Coil Wrapper Vertical Large
Heavy-duty vertical ring wrapper for large coils up to 1500mm diameter and 3000kg.
View Details →

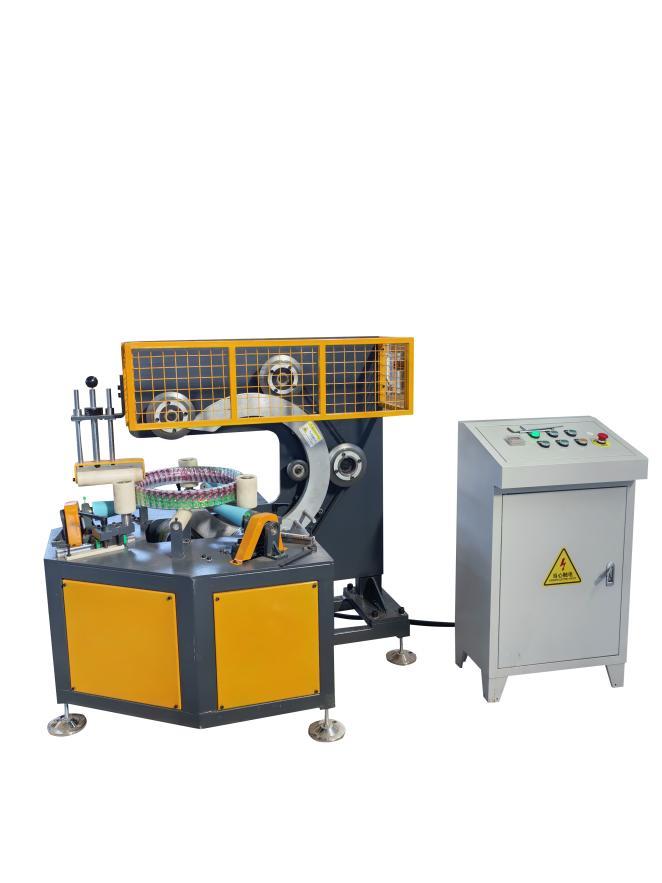

PW-RH800Ring Coil Wrapper Horizontal Small
Horizontal ring wrapper for small coils with center holes up to 800mm diameter.
View Details →

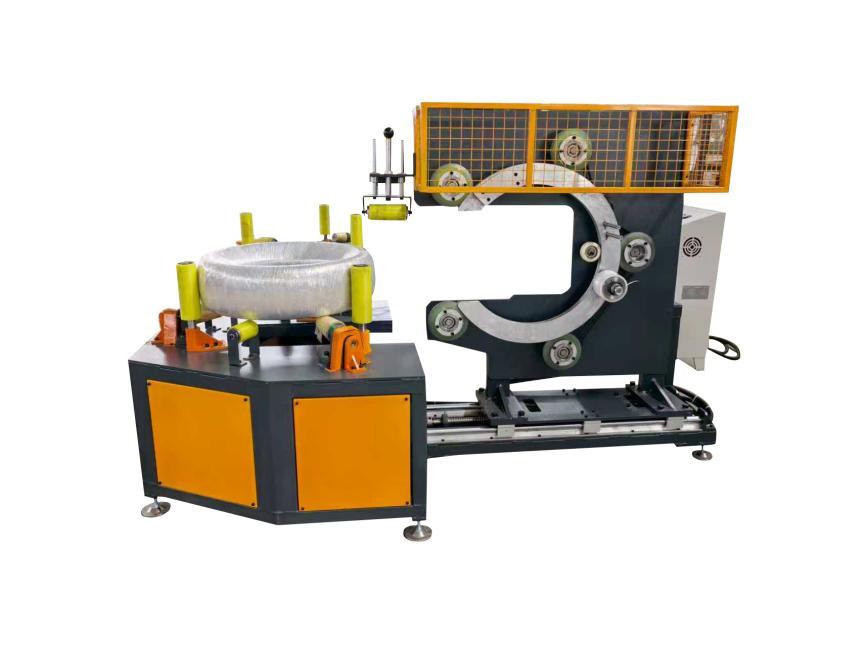

PW-RH2500Ring Coil Wrapper Horizontal Large
Heavy-duty horizontal ring wrapper for large coils up to 2500mm diameter and 5000kg.
View Details →5 Wrapping Technologies: Which One Fits Your Load?
Before choosing a specific model, understand the core technology. Each has distinct advantages for different load types and production volumes.
| Technology | How It Works | Best For | Max Speed | Key Advantage |
|---|---|---|---|---|
| Turntable | Pallet rotates on spinning platform, film carriage moves vertically | Stable loads, low-medium volume | 30/h | Lowest cost, simple operation |
| Rotary Arm | Arm rotates around stationary pallet, film follows the arm | Heavy/unstable loads, high volume | 120/h | Pallet stays still, no tipping risk |
| Gantry | Film ring moves up/down around stationary pallet on rails | Very heavy/tall loads, ultra-high speed | 120/h | Highest throughput, handles 3000kg+ |
| Horizontal | Product moves through horizontal ring, film wraps spirally | Long products: timber, steel, pipes | 20/h | Only option for products longer than pallets |
| Radial/Ring | Ring rotates around product axis, ideal for cylindrical shapes | Coils, drums, cable reels, tires | 30/h | Perfect wrap for round/odd-shaped products |
Expert Tip: If your load is stable and under 2000kg, a turntable wrapper offers the best ROI. If loads exceed 2000kg or are taller than 2000mm, choose rotary arm or gantry — the stationary pallet design eliminates tipping risk entirely.
How to Choose the Right Pallet Wrapping Machine
Key decision factors to match the right machine to your operation.
| Factor | Recommendation |
|---|---|
| Daily Volume | <50 pallets/day: semi-automatic turntable (PW-T1650). 50-100: online conveyor (PW-OL2000). >100: rotary arm or gantry (PW-RA1500 / PW-GO1200). |
| Load Stability | Stable loads: any turntable model. Unstable/lightweight loads: top press (PW-TP1650). Very tall/heavy: rotary arm or gantry (stationary pallet). |
| Load Weight | Up to 2000kg: standard turntable. 2000-3000kg: reinforced or rotary arm. >3000kg: gantry frame (PW-GF1800). |
| Product Shape | Standard pallets: turntable/rotary arm. Drums/barrels: radial drum (PW-RD2000). Long products: horizontal (PW-HS/HL). Coils: ring coil (PW-RV/RH). |
| Automation Level | Semi-automatic: manual load + auto wrap. Fully automatic: conveyor-fed, auto film attach/cut. Integration: PLC, Ethernet/IP, Modbus. |
| Budget & ROI | Entry: PW-T1650 (ROI 6-12mo). Mid: PW-OL2000 / PW-TP1650. High-speed: PW-RA1500 / PW-GO1200 (ROI 4-8mo). |
Expert Selection Tips
- Calculate actual daily pallet volume — undersizing causes bottlenecks
- Measure your largest pallet including overhang before ordering
- For unstable loads, top press eliminates load shift and rewrapping
- Rotary arm and gantry wrappers keep pallet stationary — ideal for heavy/tall loads
- Film pre-stretch (250%) is the biggest cost saver — verify carriage quality
- Request a free factory test with your actual pallets before purchase
- Compare total cost of ownership, not just purchase price
- Plan for 30% growth capacity when selecting machine size
How Fast Does a Pallet Wrapper Pay for Itself?
Most operations recover their investment within 4-12 months. Here is the math for three typical scenarios.
20 Pallets/Day
60 Pallets/Day
150 Pallets/Day
Savings Formula: Annual Savings = (Labor Cost × 0.7) + (Film Cost × 0.35) + (Damage Cost × 0.8). The biggest saving comes from labor — a single operator can run 3-5 machines simultaneously, compared to 1 operator per 15 pallets manually.
Industries We Serve
Trusted across industries where consistent pallet wrapping is critical for safe transport and storage.
Food & Beverage
Bottling, canning, and packaged food production lines requiring stable transport.
Pharmaceutical
Validated wrapping processes for medicine boxes and medical supply pallets.
E-Commerce & Logistics
Distribution centers and fulfillment hubs handling high-volume mixed pallets.
Manufacturing
Parts, components, and finished goods wrapping in manufacturing facilities.
Building Materials
Bricks, tiles, cement bags, and insulation requiring stabilization for transport.
Chemical & Industrial
Drums, containers, and industrial chemical products requiring secure wrapping.
Automotive
Parts, components, and assembly line products with heavy or irregular loads.
Agriculture
Grain, seeds, and processed agricultural products for domestic and export.
Tailored Solutions for 4 Key Industries
Different industries face different wrapping challenges. Here is how SunAura configures machines for each sector.
🍺 Food & Beverage
- Challenge: High-speed bottling lines output 100+ pallets/day; hygiene standards require food-grade components; cold storage environments demand low-temp film
- Solution: PW-OL2000 online wrapper with conveyor integration, stainless steel film carriage, IP65-rated electrical cabinet
- Config: 30 pallets/h, 250% pre-stretch, automatic film attach/cut, PLC with recipe memory for different product lines
- Result: One client reduced film consumption by 38% and eliminated 2 wrapping operator positions
🧱 Building Materials & Chemical
- Challenge: Heavy loads (1500-3000kg), irregular shapes (bags, drums, bricks), outdoor storage requires weather-resistant wrap
- Solution: PW-RA1500 rotary arm wrapper (stationary pallet) + PW-RD2000 radial drum wrapper for barrels
- Config: 60-120 pallets/h, reinforced structure, top sheet dispenser for weather protection, heavy-duty chain drive
- Result: A cement bag manufacturer reduced transit damage from 6% to under 1% with top-sheet integration
📦 E-Commerce & Logistics
- Challenge: Mixed SKU pallets with varying heights; peak season volume can triple; need integration with sortation systems
- Solution: PW-TP1650 top-press wrapper for unstable mixed loads + PW-GO1200 gantry wrapper for peak throughput
- Config: Pneumatic top press, variable wrap force by zone, barcode scanner for automatic recipe selection, Ethernet/IP communication
- Result: A 3PL center handles 200+ pallets/day with 2 operators, down from 8 operators pre-automation
🚗 Automotive Manufacturing
- Challenge: JIT delivery requires precise load stability; parts come in various container types; traceability is mandatory
- Solution: PW-RA1500 rotary arm with AGV integration, custom fixture for specialized containers, RFID tag reading
- Config: AGV-compatible conveyor, MES system integration, wrap data logging (force, layers, film usage per pallet), QR code label printer
- Result: Tier-1 supplier achieved 100% traceability and zero load shifts in 12 months of JIT deliveries
8 Costly Mistakes When Buying a Pallet Wrapper
After 15 years in this industry, we have seen these mistakes cost companies tens of thousands of dollars. Avoid them.
Buying on Price Alone
A $3,000 cheaper machine with inferior pre-stretch will cost you $5,000/year in extra film. Always calculate total cost of ownership over 5 years, not just purchase price.
Underestimating Future Volume
Most companies grow 20-30% within 2 years. If you buy a machine rated for exactly your current volume, you will be bottlenecked soon. Spec for 30% growth capacity.
Ignoring Pre-Stretch Quality
Pre-stretch is where 90% of film savings come from. Cheap machines claim 250% but actually deliver 150-180%. Demand a live film consumption test before purchasing.
Choosing Turntable for Unstable Loads
Lightweight or top-heavy loads can shift or tip on a turntable. If your load center of gravity is above 1200mm or weight under 300kg, choose a top-press or rotary arm machine.
Not Checking Electrical Components
The brand of PLC, inverter, and sensors determines reliability and spare parts availability. Ask for specific brand names — reputable machines use Siemens, Schneider, or Omron components.
Skipping the Factory Run Test
Always require a 48-hour continuous run test with your actual pallets and film before shipment. This catches 90% of issues that would otherwise appear on your production floor.
Underestimating Installation Time
A semi-automatic machine takes 1-2 days to install and train. Fully automatic lines take 5-10 days. Plan your production schedule accordingly — do not install during peak season.
Not Confirming Spare Parts Supply
A machine is only as good as its spare parts availability. Confirm that the manufacturer stocks common wear parts (film carriage belts, cutters, sensors) and can ship within 48 hours for the next 10 years.
Stretch Film Selection & Optimization Guide
The right film reduces cost by 30-40% while improving load stability. Here is everything you need to know.
| Film Type | Thickness | Best For | Cost Level |
|---|---|---|---|
| Hand Wrap Film | 17-23 micron | Low volume, irregular loads | Low |
| Machine Wrap Film | 15-25 micron | Standard machine wrapping | Medium |
| Pre-Stretch Film | 10-15 micron | High-volume, cost-optimized | Medium-High |
| Power/Premium Film | 8-12 micron | Heavy loads, high performance | High |
| UV-Resistant Film | 15-25 micron | Outdoor storage, construction | High |
| Biodegradable Film | 15-20 micron | Sustainability-focused companies | Very High |
5 Ways to Cut Film Consumption
- Upgrade to 250% pre-stretch carriage: The single biggest saver — reduces film usage by 30-40% vs 150% pre-stretch
- Use thinner gauge film: Modern 10-12 micron power films outperform old 20-23 micron films at half the cost per pallet
- Optimize wrap patterns: Most loads need 3-4 bottom layers, 2-3 middle, 3-4 top. More layers = wasted film
- Adjust tension by zone: Heavier bottom needs more tension; lighter top needs less. Variable force wrapping saves 15-20%
- Maintain the film carriage: Worn rollers and misaligned belts cause film breaks and waste. Clean and lubricate monthly
Film Parameter Recommendation by Load Type
| Load Type | Film Thickness | Pre-Stretch | Wrap Layers | Tension |
|---|---|---|---|---|
| Light boxes (under 500kg) | 10-12 micron | 250% | 2-3 | Low-Medium |
| Standard cartons (500-1000kg) | 12-15 micron | 250% | 3-4 | Medium |
| Heavy/bagged goods (1000-2000kg) | 15-20 micron | 200-250% | 4-5 | Medium-High |
| Beverages/bottles | 12-15 micron | 250% | 4-5 | High (bottom reinforcement) |
| Building materials/brick | 17-23 micron | 150-200% | 5-6 | High + top sheet |
Your Pallet Wrapping Automation Roadmap
Most companies evolve through 3 stages. Plan ahead so each step builds on the last — no wasted investment.
Semi-Automatic Wrapping
Best for: Under 50 pallets/day, budget under $10K
What You Get
- ✓ PW-T1650 turntable wrapper
- ✓ 250% pre-stretch film carriage
- ✓ 1 operator can run 2-3 machines
- ✓ Installation in 1-2 days
Plan for Next Stage
- → Choose machine with upgradeable PLC
- → Reserve floor space for conveyor
- → Run 3-phase power to the area
- → Document your wrap recipes digitally
Fully Automatic Single Machine
Best for: 50-150 pallets/day, budget $20K-$50K
What You Get
- ✓ PW-OL2000 or PW-RA1500 automatic
- ✓ Conveyor integration (in/out)
- ✓ Automatic film attach & cut
- ✓ PLC with 50+ recipe memory
- ✓ 1 operator oversees entire line
Integration Options
- → Barcode/QR scanner for auto recipe
- → Top sheet dispenser for weather
- → Label printer for pallet ID
- → Ethernet/IP or Modbus TCP
- → AGV-compatible staging area
End-of-Line System Integration
Best for: 150+ pallets/day, full automation, budget $100K+
Full System Components
- ✓ Case erector + case sealer (upstream)
- ✓ Palletizer (robotic or conventional)
- ✓ PW-GO1200 gantry wrapper (high speed)
- ✓ Top sheet + label application
- ✓ Stretch hooder (optional, for outdoor)
- ✓ AGV or conveyor to warehouse
Data & Connectivity
- → MES/ERP integration (SAP, Oracle)
- → OEE monitoring (availability, performance)
- → Film usage tracking per SKU
- → Predictive maintenance alerts
- → Remote diagnostics via VPN
- → Digital twin for optimization
Ready to Map Your Automation Journey?
SunAura engineers provide free facility layout design and automation roadmap consulting. Send us your production data and we will show you exactly when and how to upgrade.
Get Free Automation ConsultationFrequently Asked Questions
Common questions about pallet wrapping machines, selection, and operation.
Need a Complete Packaging Line? We Design It for You.
From carton sealing to pallet wrapping — SunAura engineers complete end-of-line packaging systems tailored to your products, volume, and facility layout. Free consultation and layout design.
